Product Summary
The VS1003B is a single-chip MP3/WMA/MIDI audio decoder and ADPCM encoder. The VS1003B contains a high-performance, proprietary low-power DSP processor core VS_DSP4, working data memory, 5 KiB instruction RAM and 0.5 KiB data RAM for user applications, serial control and input data interfaces, 4 general purpose I/O pins, an UART, as well as a high-quality variable-sample-rate mono ADC and stereo DAC, followed by an earphone amplifier and a common buffer. The VS1003B receives its input bitstream through a serial input bus, which it listens to as a system slave.
Parametrics
VS1003B absolute maximum ratings: (1)Analog Positive Supply AVDD: -0.3 to 2.85 V; (2)Digital Positive Supply CVDD: -0.3 to 2.85 V; (3)I/O Positive Supply IOVDD: -0.3 to 3.6 V; (4)Current at Any Digital Output: 50 mA; (5)Voltage at Any Digital Input: -0.3 to IOVDD+0.31 V; (6)Operating Temperature: -40 to +85 ℃; (7)Storage Temperature: -65 to +150 ℃.
Features
VS1003B features: (1)Encodes IMA ADPCM from microphone or line input; (2)Streaming support for MP3 and WAV; (3)Bass and treble controls; (4)Operates with a single 12..13 MHz clock; (5)Internal PLL clock multiplier; (6)Low-power operation; (7)High-quality on-chip stereo DAC with no phase error between channels; (8)Stereo earphone driver capable of driving a 30Ω load; (9)Separate operating voltages for analog, digital and I/O; (10)5.5 KiB On-chip RAM for user code / data; (11)Serial control and data interfaces; (12)Can be used as a slave co-processor; (13)SPI flash boot for special applications; (14)UART for debugging purposes; (15)New functions may be added with software and 4 GPIO pins.

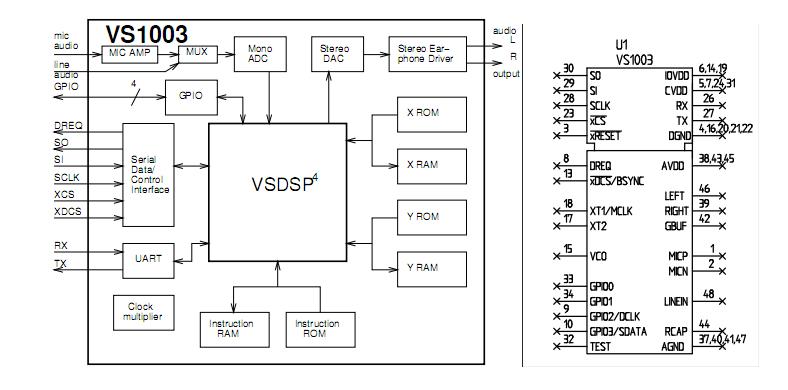

Diagrams
 |
