Product Summary
The EPM570T144C5N is an instant-on, non-volatile CPLD which is based on a 0.18-μm, 6-layermetal-flash process, with densities from 240 to 2,210 logic elements (LEs) (128 to 2,210 equivalent macrocells) and non-volatile storage of 8 Kbits. The EPM570T144C5N offers high I/O counts, fast performance, and reliable fitting versus other CPLD architectures.
Parametrics
EPM570T144C5N absolute maximum ratings: (1)Internal supply voltage With respect to ground: –0.5 to 4.6 V; (2)I/O supply voltage: –0.5 to 4.6 V; (3)DC input voltage: –0.5 to 4.6 V; (4)DC output current, per pin: –25 to 25 mA; (5)Storage temperature No bias: –65 to 150 ℃; (6)Ambient temperature Under bias: –65 to 135 ℃; (7)Junction temperature TQFP and BGA packages under bias: 135 ℃.
Features
EPM570T144C5N features: (1)Low-cost, low-power CPLD; (2)Instant-on, non-volatile architecture; (3)Standby current as low as 29 μA; (4)Provides fast propagation delay and clock-to-output times; (5)Provides four global clocks with two clocks available per logic array block (LAB); (6)UFM block up to 8 Kbits for non-volatile storage; (7)MultiVolt core enabling external supply voltages to the device of either 3.3 V/2.5 V or 1.8 V.

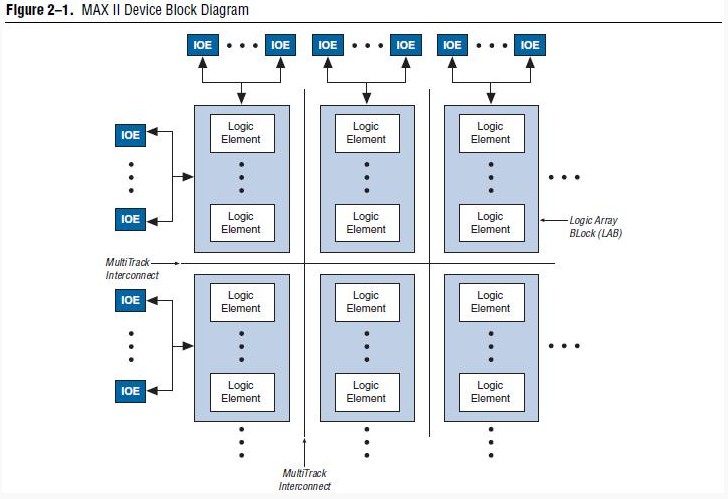

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 EPM570T144C5N |
|
IC MAX II CPLD 570 LE 144-TQFP |
Data Sheet |
|
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
 |
EPM5128GM |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
EPM5128GM/883 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
 |
EPM570F100C4N |
|
IC MAX II CPLD 570 LE 100-FBGA |
Data Sheet |
|
|
||||||
 |
EPM570F256C4N |
|
IC MAX II CPLD 570 LE 256-FBGA |
Data Sheet |
|
|
||||||
|
EPM570F256C5 |
|
IC MAX II CPLD 570 LE 256-FBGA |
Data Sheet |
|
|
||||||
|
EPM570T144C5N |
|
IC MAX II CPLD 570 LE 144-TQFP |
Data Sheet |
|
|
||||||
