Product Summary

The MAX3485CSA+T is a 3.3V, low-power transceiver for RS-485 and RS-422 communication. Each part contains one driver and one receiver. The MAX3485CSA+T features slew-rate-limited drivers that minimize EMI and reduce reflections caused by improperly terminated cables, allowing error-free data transmission at data rates up to 250kbps. The MAX3485CSA+T transmits at up to 10Mbps. Drivers are short-circuit current limited and are protected against excessive power dissipation by thermal shutdown circuitry that places the driver outputs into a high-impedance state. The receiver input has a fail-safe feature that guarantees a logic-high output if both inputs are open circuit. The MAX3485CSA+T is designed for half-duplex communication.

Parametrics

MAX3485CSA+T absolute maximum ratings: (1)Supply Voltage (VCC): 7V; (2)Control Input Voltage (RE, DE): -0.3V to 7V; (3)Driver Input Voltage (DI): -0.3V to 7V; (4)Driver Output Voltage (A, B, Y, Z): -7.5V to 12.5V; (5)Receiver Input Voltage (A, B): -7.5V to 12.5V; (6)Receiver Output Voltage (RO): -0.3V to (VCC + 0.3V); (7)Operating Temperature Ranges: MAX34C is 0℃ to +70℃, MAX34E is -40℃ to +85℃; (8)Storage Temperature Range: -6℃ to +160℃; (9)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX3485CSA+T features: (1)Operate from a Single 3.3V Supply—No Charge Pump!; (2)Interoperable with +5V Logic; (3)8ns Max Skew (MAX3485/MAX3490/MAX3491); (4)Slew-Rate Limited for Errorless Data Transmission (MAX3483/MAX3488); (5)2nA Low-Current Shutdown Mode (MAX3483/MAX3485/MAX3486/MAX3491); (6)-7V to +12V Common-Mode Input Voltage Range; (7)Allows up to 32 Transceivers on the Bus; (8)Full-Duplex and Half-Duplex Versions Available; (9)Industry Standard 75176 Pinout (MAX3483/MAX3485/MAX3486); (10)Current-Limiting and Thermal Shutdown for Driver Overload Protection.

Diagrams

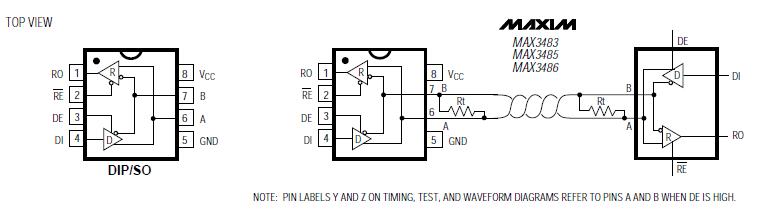

 MAX3485CSA+ Pin Configuration and Typical Operating Circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

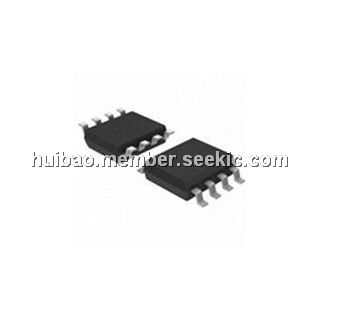

MAX3485CSA+T
MAX3485CSA+T

Maxim Integrated Products

RS-422/RS-485 Interface IC 3.3V 10Mbps Transceiver

Data Sheet

0-2080: $1.12
2080-2500: $1.12
