Product Summary
The TC7W241FU is a high speed C2MOS Dual Bus Buffers fabricated with silicon gate C2MOS technology. It achieves the high speed operation similar to equivalent LSTTL while maintaining the C2MOS low power dissipation. The TC7W241FU is a non-inverting 3-state buffer has one active-high and one active-low output enable. All inputs are equipped with protection circuits against static discharge or transient excess voltage.
Parametrics
TC7W241FU absolute maximum ratings: (1)Supply voltage range: -0.5 to 7 V; (2)DC input voltage: -0.5 to + 0.5 V; (3)DC output voltage: -0.5 to + 0.5 V; (4)Input diode current: ±20 mA; (5)Output diode current:±20 mA; (6)DC output current:±35 mA; (7)DC VCC/ground current: ±37.5 mA; (8)Power dissipation: 300 mW; (9)Storage temperature range: -65 to 150℃; (10)Lead temperature (10 s): 260℃.
Features
TC7W241FU features: (1)High speed; (2)Low power dissipation; (3)High noise immunity:; (4)Output drive capability: 15 LSTTL loads; (5)Symmetrical output impedance: |IOH| = IOL = 6 mA (min); (6)Balanced propagation delays; (7)Wide operating voltage range: VCC (opr) = 2 to 6 V.

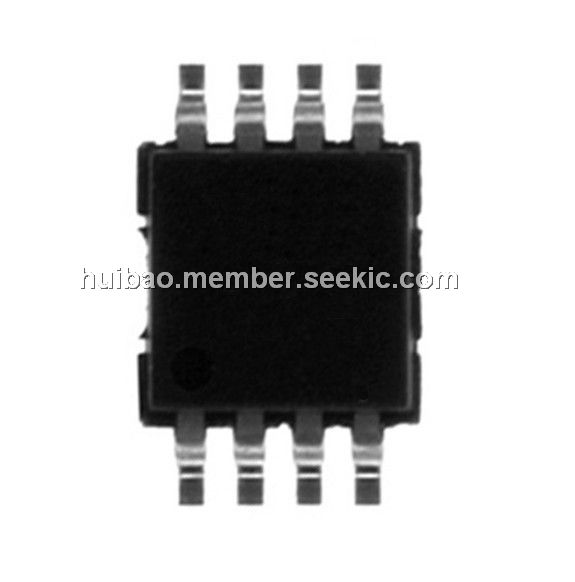

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TC7W241FU |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
TC7W241FUTE12LF |
Toshiba |
Buffers & Line Drivers x34 3 STATE BUFFER |
Data Sheet |
|
|
||||||||||||
